Alloy Magnetic Cores (AMC) specialises in manufacturing strip wound cores using Grain Oriented Silicon Steel (GOSS) and Non-Oriented Silicon Steel (NOSS) since 1984. We supply C Cores, E Cores, E and I Laminations, and Jencores (Unicore). Mitre Core Technologies (MCT), our subsidiary, offers custom built mitred cores ranging from 5kVA to 80MVA. With in-house fabrication, we tailor designs to your needs. Our ISO 9001:2015 certification ensures top quality products, and state-of-the-art testing facilities verify performance. Trust AMC for precision in transformer core solutions.
The ultimate in lightweight and efficient core design, offering lower Watt losses and exciting current with faster assembly time and major cost savings.
Traditional C and E cores, according to British or Continental standards and Toroidal cores for use in high accuracy applications such as high voltage and current transformers.
We stock an extensive range of E-I and U-I laminations in non oriented silicon steel for use in transformers and chokes, and grain oriented silicon steel for applications where low losses are required.
We can now supply the latest amorphous metal core technology which is ideal for very low loss applications.
For the highest quality step lap mitred and square cut cores in single or three phase design we manufacture any size to your specifications from 10kVA to 80mVA.
We are a ‘one stop shop’ offering all transformer components under one roof, from steel frames and brackets to Nylon bobbins and housings.
Grade | Thickness | Density | Max Core Loss at 50Hz (W/kg) | Min Induction at 800 A/m |
|
---|---|---|---|---|---|
1.5T | 1.7T | ||||
23H75 | 0.23 | 7.65 | 0.52 | 0.75 | 1.88 |
23H85 | 0.23 | 7.65 | 0.59 | 0.85 | 1.88 |
23H90 | 0.23 | 7.65 | 0.64 | 0.92 | 1.88 |
MOH | 0.27 | 7.65 | 0.77 | 1.05 | 1.88 |
M4 | 0.27 | 7.65 | 0.90 | 1.28 | 1.85 |
M5 | 0.30 | 7.65 | 0.97 | 1.39 | 1.80 |
M6 | 0.35 | 7.65 | 1.11 | 1.57 | 1.80 |

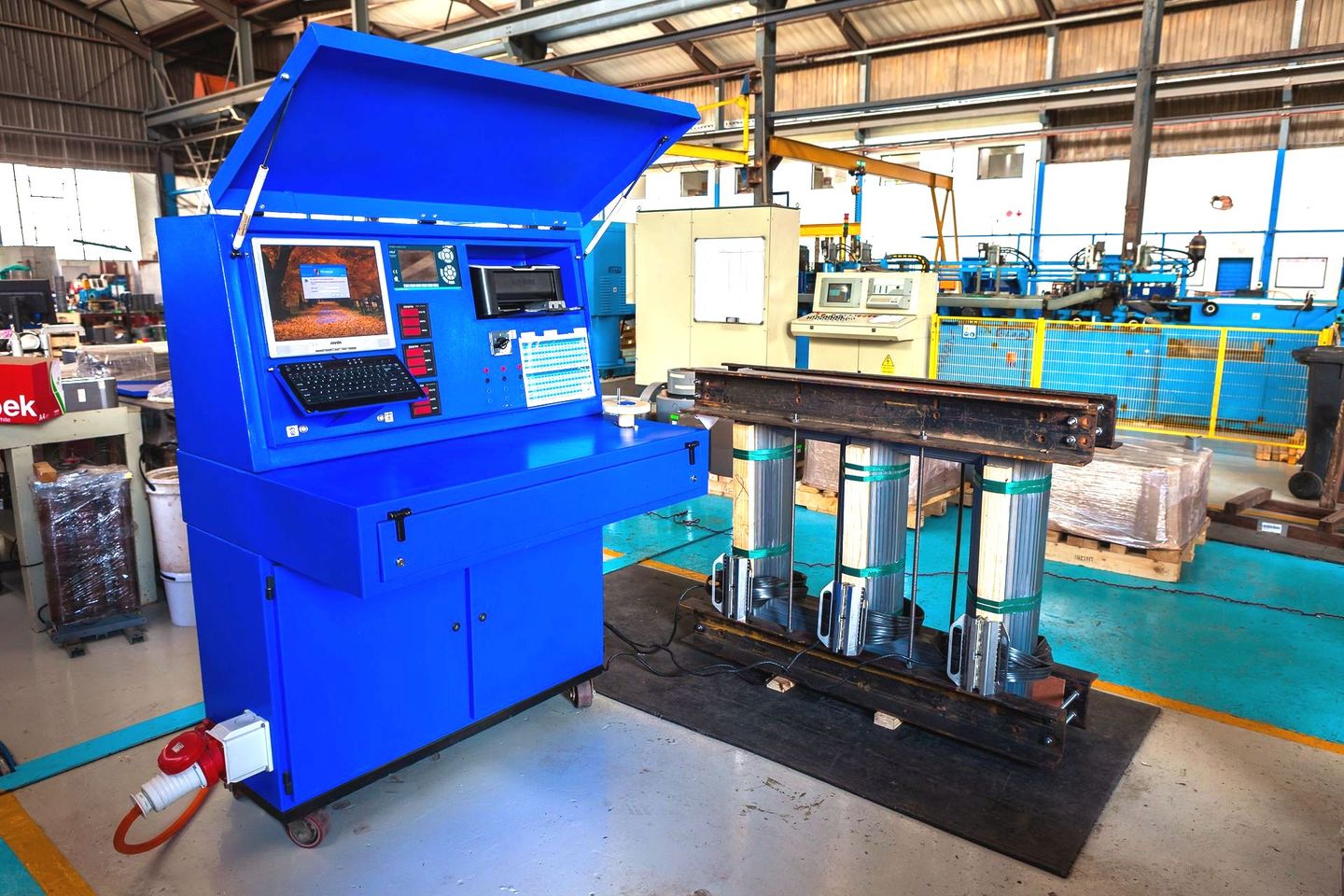

All material is pre-tested on our Soken Iron Loss Tester to ensure quality and authenticity of material used, and all products are tested after production on one of our 5 test benches to guarantee final No Load Losses
Grade
Thickness
Density
Max Core Loss at 50Hz (W/kg)
Min Induction at 800 A/m, T
-
o.23
0.23
0.23
0.27
0.27
0.30
0.35
-
23H75
23H85
23H90
MOH
M4
M5
M6
-
7.65
7.65
7.65
7.65
7.65
7.65
7.65
1.5T
0.52
0.59
0.64
0.77
0.90
0.97
1.11
1.7T
0.75
0.85
0.92
1.05
1.28
1.39
1.57
-
1.88
1.88
1.88
1.88
1.88
1.80
1.80
We supply specific core loss curves on request. Please note the final losses of the core will vary and typically losses will be higher in three phase and in single phase cores due to the stack factor and destruction factor of the core. Performance curves (W/kg) available on request.
